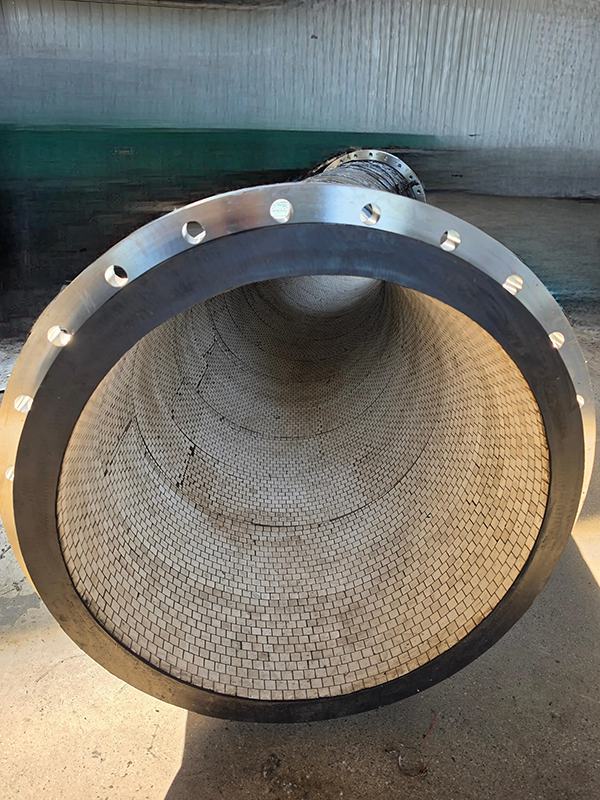

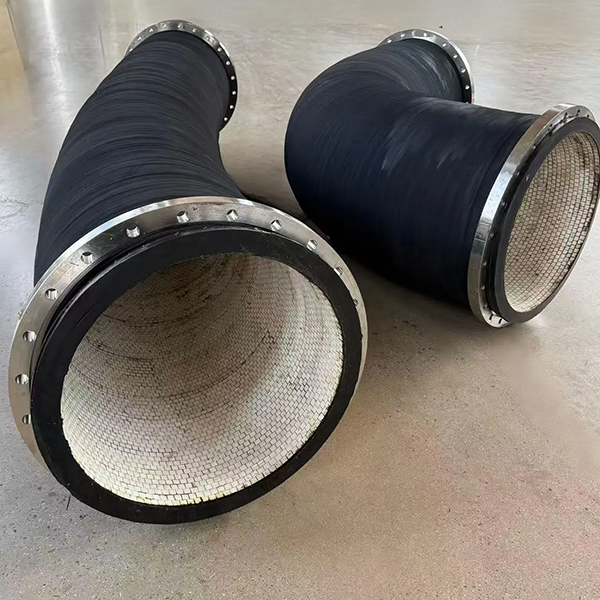

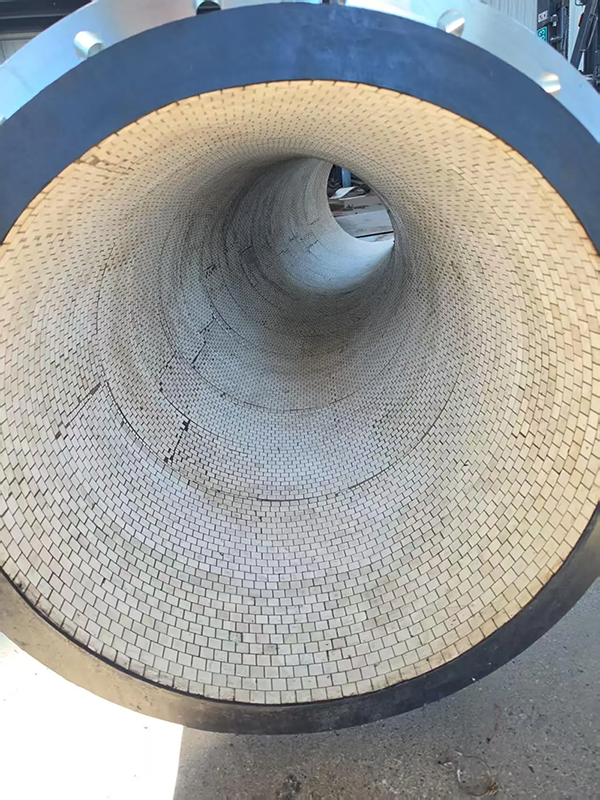

Ceramic Lined Rubber Hose
The ceramic lined rubber hose is using in highly aggressive circumstance where the conventional unlined rubber hose requires frequent replacement. Also, ceramic lined rubber hose can be installed at some kind of vibration machinery or with some non-stationary equipment. It can increase the selection for engineers with widely approaches of installation and operation.
Features
1. Wear resistance
The wear resistance of ceramic lined rubber hose is 10 times higher than that of ordinary steel pipe, and is 20 times more than that of common hose;
2. Corrosion resistance
Ceramic and high-quality anti - corrosive rubber can resist all the harsh conditions;
3. Impact resistance
The impact on ceramics force moment by rubber buffer and absorption, so SHP-CR wear-resistant ceramic rubber hose for larger particles impact;
4. Light weight
Weight is only 30% of steel pipes;
5. Flexible
The design of the cylindrical ceramic inside the rubber and the precise arrangement make the pipe with good flexibility, large angle bending will not have any effect on the ceramic;
6. Convenient and quick installation
Provide with connections of fixed flange, active flange, screw, or quick connector.
Technical Specifications
1. Diameter Sizes from 1 inch up to 24 inch
2.Lengths up to 20 meters
3.Maximum operating pressure of 150 Psi
4. Maximum operating temperature of 250˚F
Date of dimension
|
Size(inch) |
I.D(inch) |
O.D(inch) |
Max Length(ft) |
Min bend radius(inch) |
|
1 |
1.00 |
1.65 |
32LF |
20 |
|
1¼ |
1.25 |
1.97 |
32LF |
25 |
|
1½ |
1.50 |
2.20 |
32LF |
30 |
|
2 |
2.00 |
2.83 |
65LF |
40 |
|
2½ |
2.67 |
3.70 |
65LF |
54 |
|
3 |
3.00 |
4.13 |
65LF |
60 |
|
3½ |
3.27 |
4.72 |
65LF |
64 |
|
4 |
4.00 |
5.51 |
65LF |
80 |
|
6 |
6.00 |
7.48 |
65LF |
120 |
|
8 |
7.64 |
9.25 |
32LF |
153 |
|
10 |
9.65 |
11.42 |
32LF |
193 |
|
12 |
11.77 |
13.78 |
32LF |
235
|
